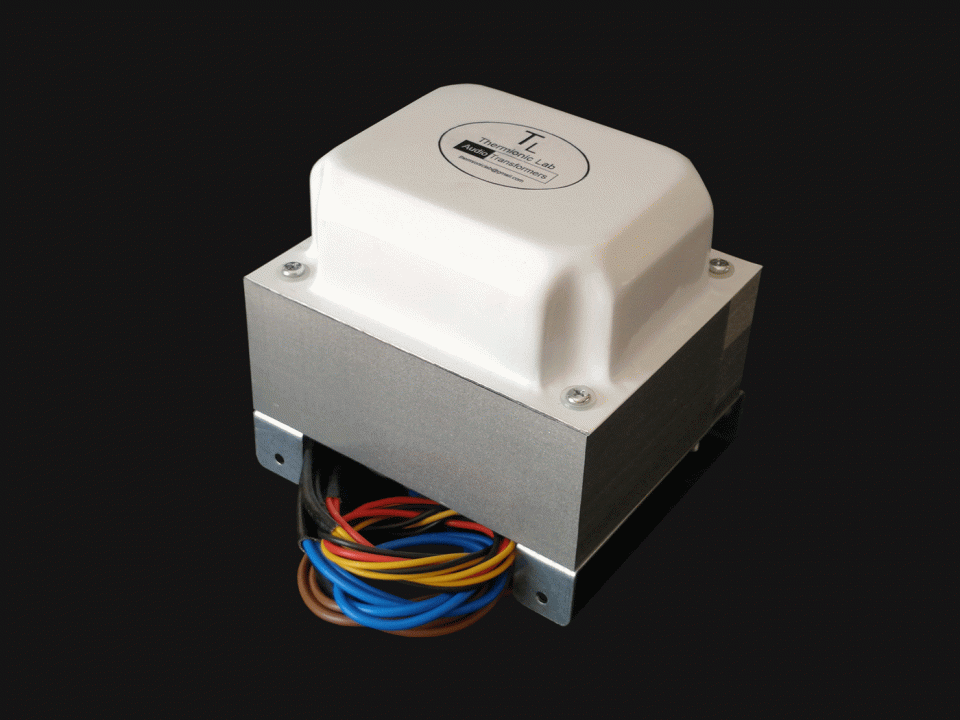

Power Transformer for Upgrading Jadis DA-7 amplifier. (The transformer is NOT a drop in item . Please see the dimensions in the photo to decide if it fits to your chassis) Also suitable for building big projects based on mulptiple paralleled tubes like EL34 6L6 KT88-KT120 etc in SE or PP mode.
TECHNICAL FEATURES:
Primary voltage: 120Vac/60Hz OR 240Vac /50HZHz (Please state the primary voltage suitable for your country)
The transformer can be custom wound to different secondary voltages
secondary voltages:
350Vac /1200mA
12.6Vac/8.5A
12.6Vac/8.5A
62Vac/300mA
Length of Lead wires:400mm
Core size:EI150/60
Lamination Thickness:0.35mm
Weight : 9Kgr
Dimensions: 150mmx125x140mm
Mounting: horizontal placement
